Predefined database
Tag organization, alarm definitions, priorities and templates aligned to client norms
Equipment library
Pre-built models for Siemens, ABB, SEL, Schneider, GE, Ingeteam, Novus and more.
One-click IED gateway
Import all communication points, alarms and historian records in a single operation.
Topology generator
Single-line diagrams generated from object lists with live energization visualization.
Dynamic screens
Add new signals or devices and screens update - no manual redesign.
Standard at scale
Replicate consistent structure across dozens of substations without re-engineering.
Predefined database structure
Modeled around transformers, concentrators, lines, relays, meters and panels — aligned to client tag organization, alarm definitions, priorities and templates. Built for large-scale replication.
Equipment library
Pre-built device models from Siemens, ABB, SEL, Schneider Electric, GE, Ingeteam, Novus and others. Pick from the library, adapt as needed — never start from scratch.
Equipment Gateway - one-click configuration
New IED commissioning and device replacement happens in a single operation. Supervisory points, alarms and historian records generate automatically.
Standard database, large-scale replication
Replicate the same structure across dozens of substations without re-engineering. The standard scales with your fleet.
Symbol library
Pre-built graphical elements for feeders, lines, transformers and components — modeled to your visual standards. Build one-line diagrams without designing every element.
Dynamic screens
Add a new data source or signal and the screen updates. No manual redesign as the substation evolves.

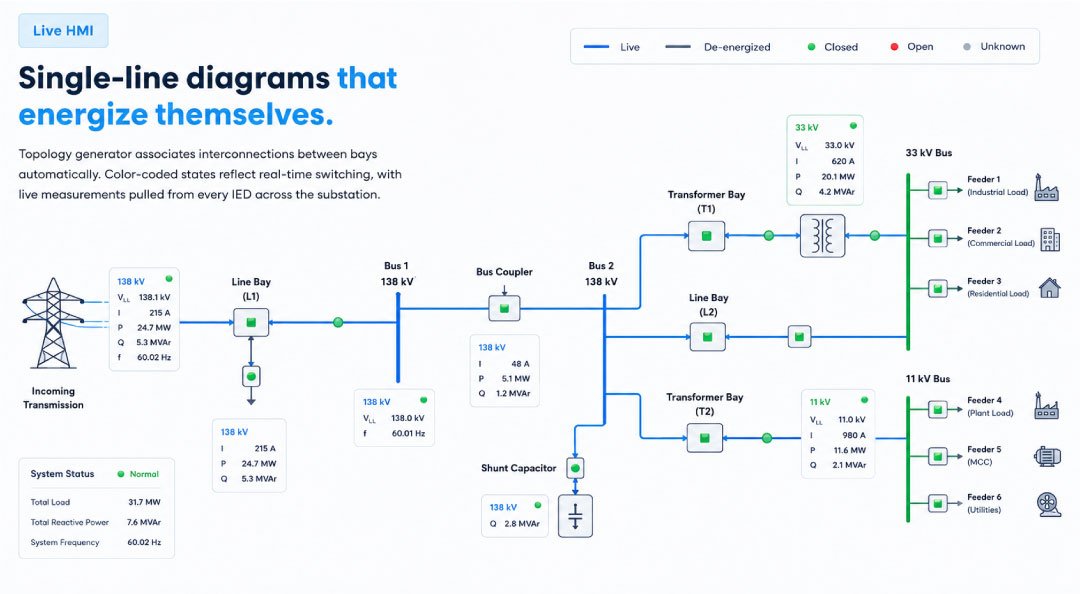

One-line diagrams + topology generator
Generated from the substation object list with copy-paste and automatic interconnection. Live energization visualization in real time.
Communication point import
Replace an IED or add a device via structured CSV import. New points map into the existing database without disrupting the standard.

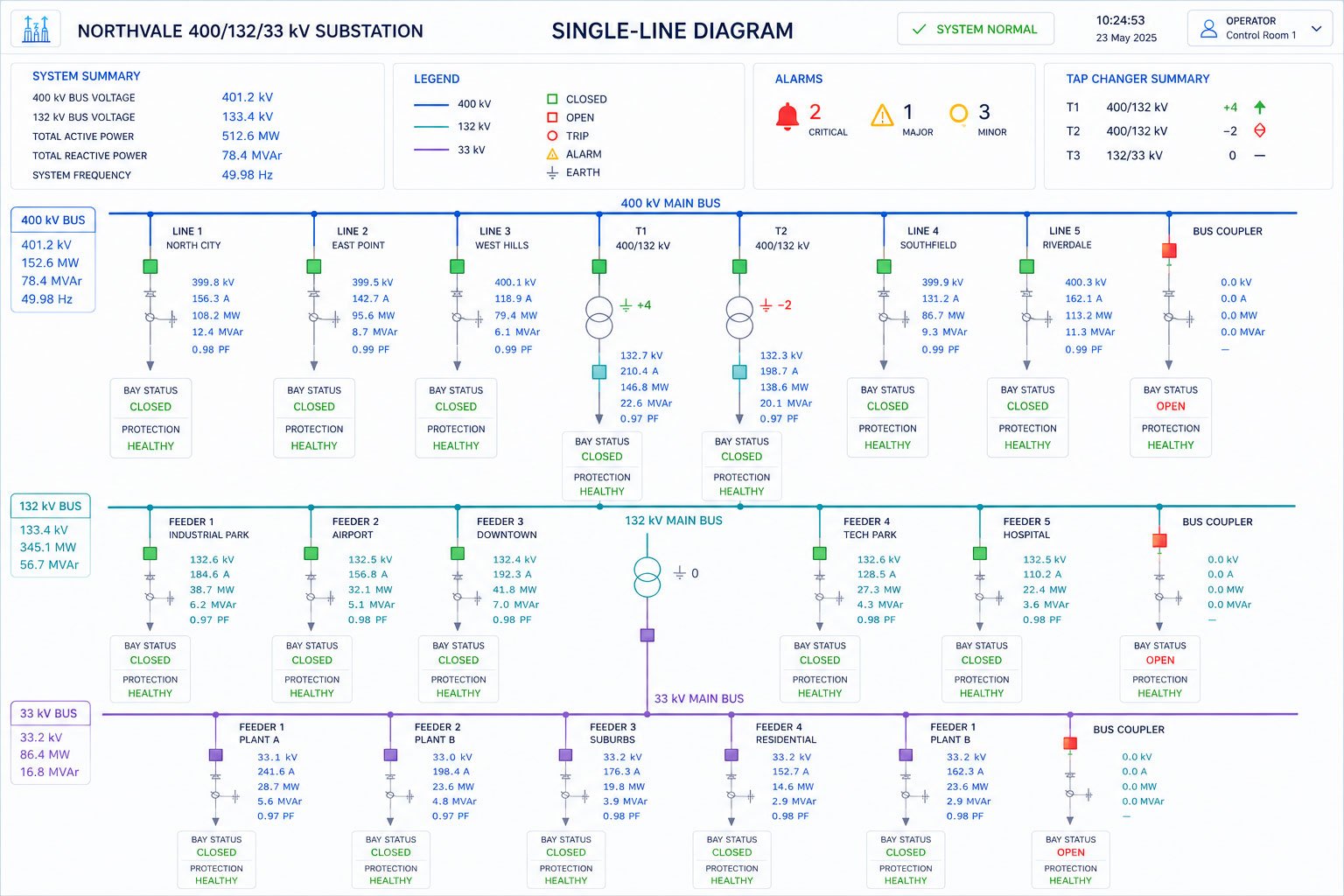

Single-Line Diagram
Full energization view with live measurements, bay status, protection states, tap positions and current readings.

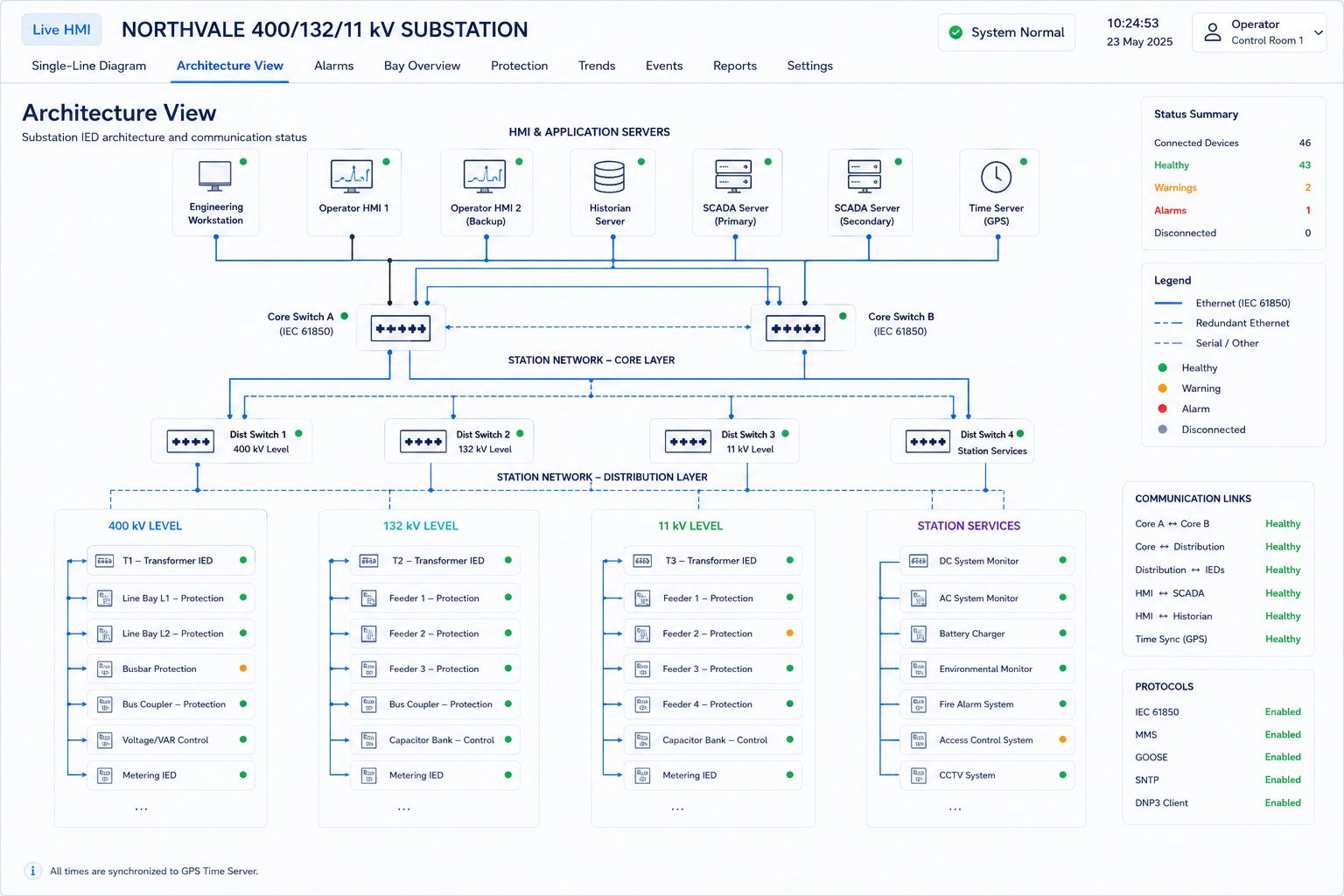

Architecture View
Substation IED architecture: connected devices, communication paths, switch fabric and HMI links with real-time status.

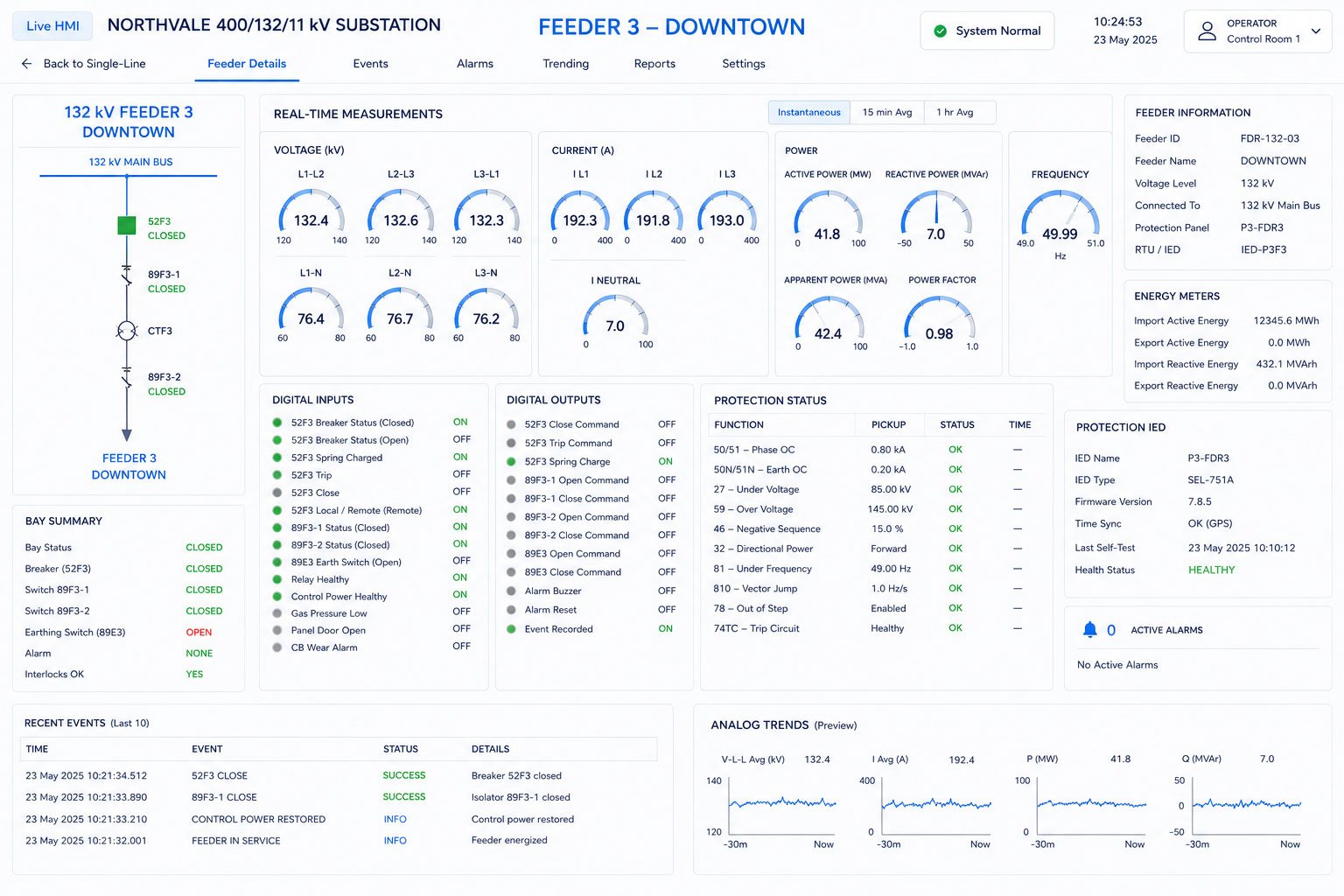

Feeder Details
Per-bay screens with miniature one-line, P/Q/I/V analogs, all digital signals and protection statuses.

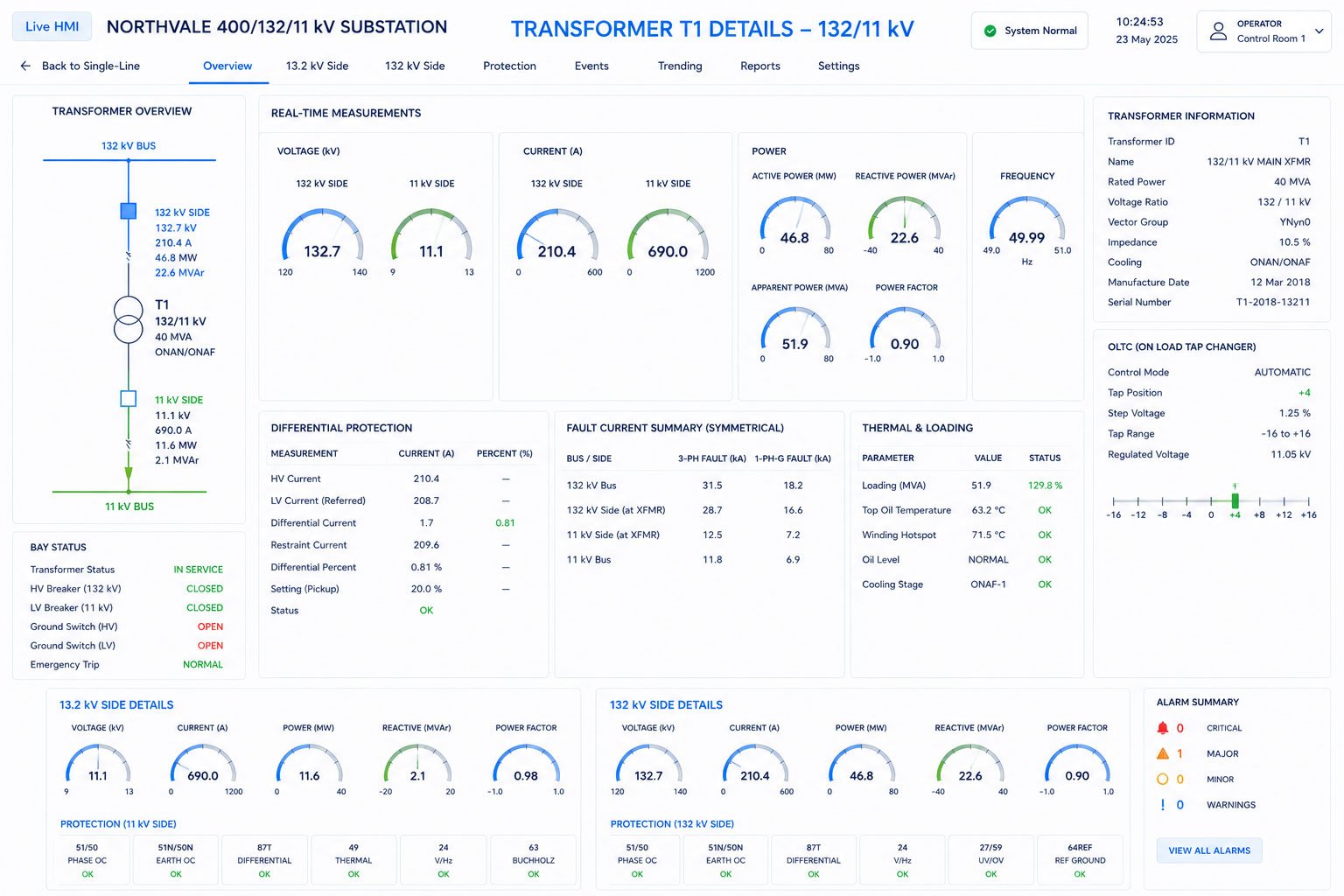

Transformer Details
Bay screens by voltage level (13.8 / 69 kV), fault currents, differential measurements and OLTC tap position.

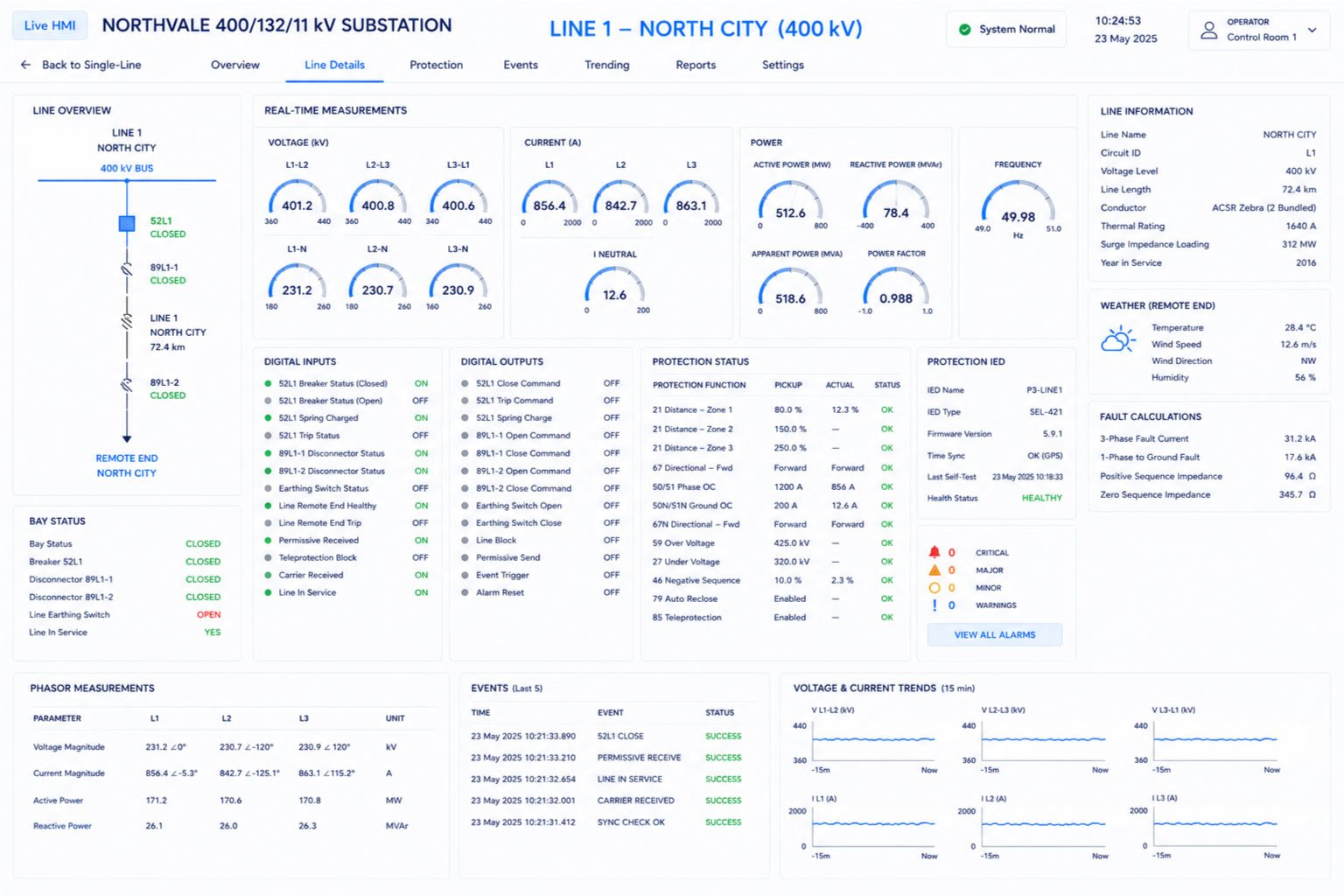

Line Details
Transmission line bay with full signal lists, protection status and analogs across phases and voltage levels.

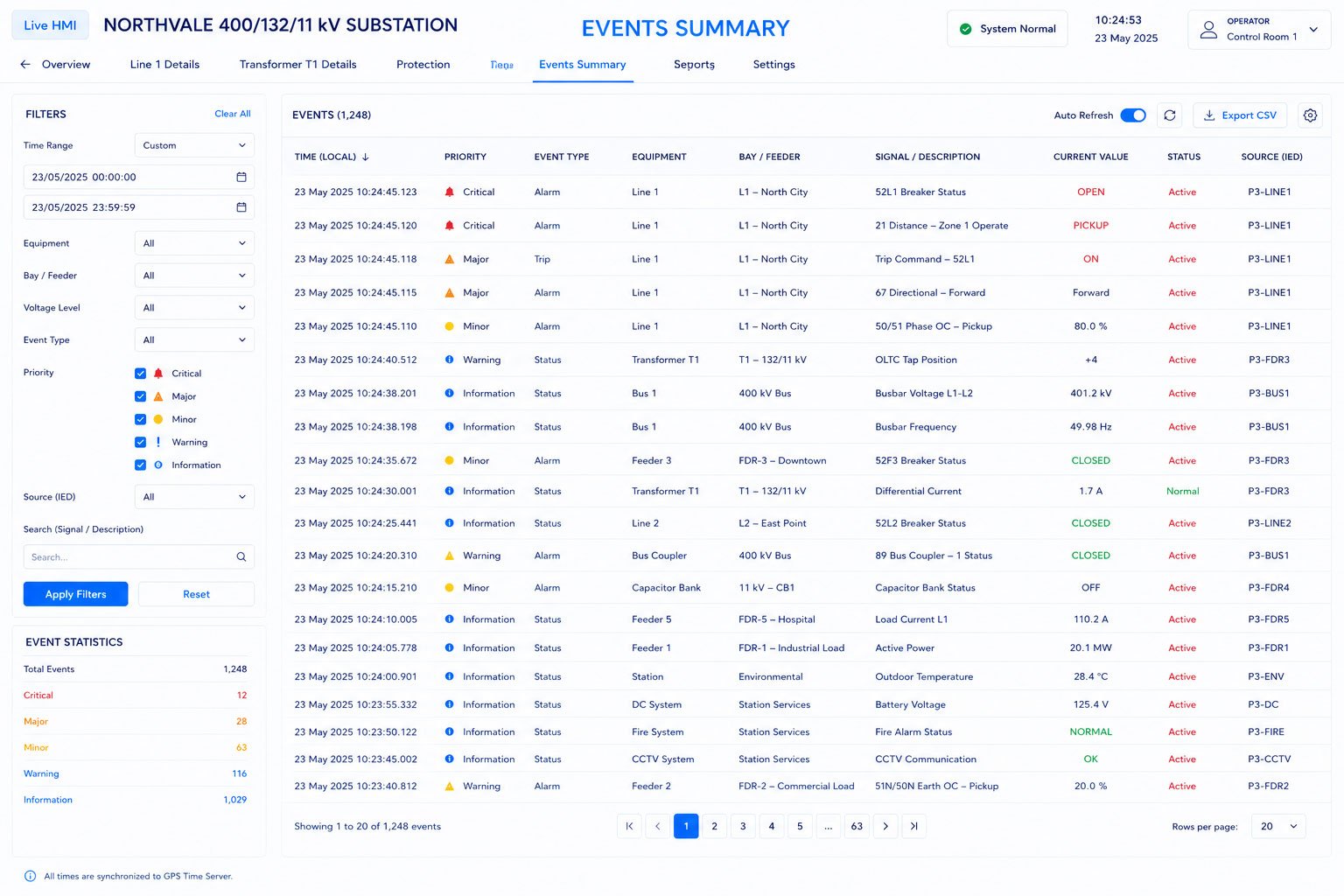

Events Summary
Timestamped event log for every signal — priorities, current values, alarm descriptions, filterable and sortable.
